UCMP test‑ Brake self‑monitoring
1. 打开机房RDF检修，CPU菜单2_30参数设置为3，同时记录抱闸测试计数器4_3的数值
(Switch on RDF, set 2_30 to 3, also record the value in 4_3 firstly)
2. 机房检修RDF打正常，测试开关261
(Set RDF to normal and test switch to 261)

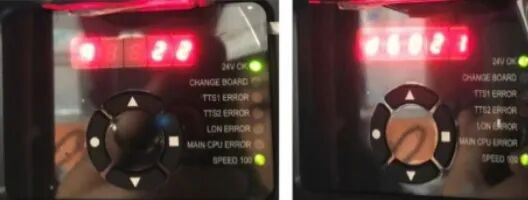

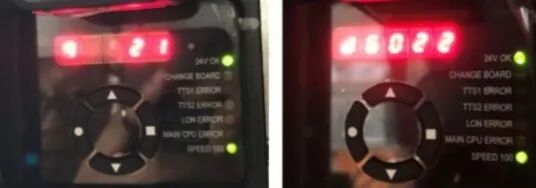

3. 电梯停止运行并等待3‑10分钟，直到出现故障代码d6023，同时检查CPU参数4_3的数值是增大了，测试成功
(stop using elevator and wait 3 to 10 minutes until fault code d6023 shows up. Also need to check 4_3 value increased, test passed)
4. 打开机房RDF检修，CPU菜单2_30恢复成4
(Switch on RDF, set 2_30 back to 4)
5. 电梯恢复正常(Put elevator to normal)
UCMP test‑ Measure stopping distance
1. 打开机房RDF检修，CPU菜单2_3参数设置电梯速度为0.63m/s，电梯恢复正常
(Set elevator to RDF mode, CPU menu 2_3 change speed to 0.63, elevator changes to normal mode)
2. 电梯运行至底层，将PMT电梯舒适感测试仪器放在轿厢中，开始记录，按下顶楼呼梯至顶层，当速度达到0.63时，拍下急停
(Call elevator to bottom floor, set PMT instrument inside the car and start to monitor, call elevator to top floor, after speed reaches 0.63, push the STOP button)
3. 电梯恢复正常，取出仪器，下载数据，分析制停距离是否在型式试验报告的范围内
(Set elevator to normal mode, take out the instrument and download the data, check whether the stopping distance is within the range of the Type Examination Report )
4. 电梯速度恢复正常(Change elevator speed back)
